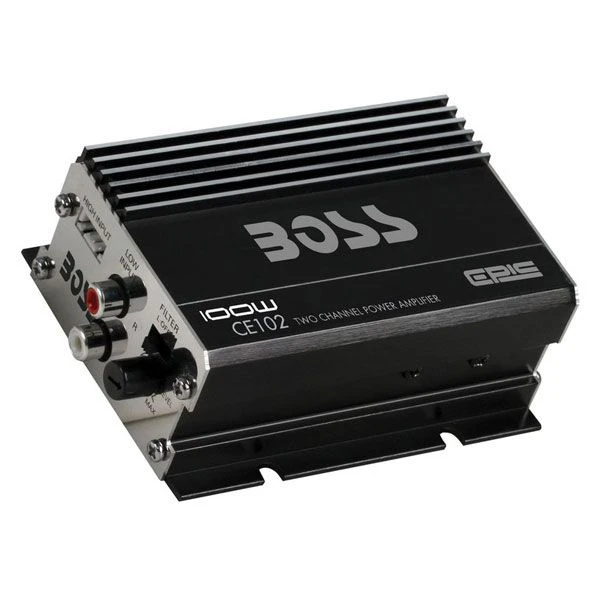

Boss Audio Chaos Epic 100 Watt 2-Channel Full Range Class A/B Amplifier – CE102

4 Ohm Stable

The lowest impedance accepted by this amplifier is 4 ohms, which makes it ideal for powering full range speakers in your vehicle, as most automotive speakers are 4 ohms impedance.

Class A/B

Class A/B amplifiers have long been known for their ability to produce great quality sound while performing more efficiently than pure Class A amplifiers. We have developed a specific linear circuitry that further reduces distortion while increasing both sound quality and power output.

Fixed High Pass Filter

Fixed High-pass filter gives you the ability to filter the frequencies that pass through to the full range speakers from a fixed frequency point.

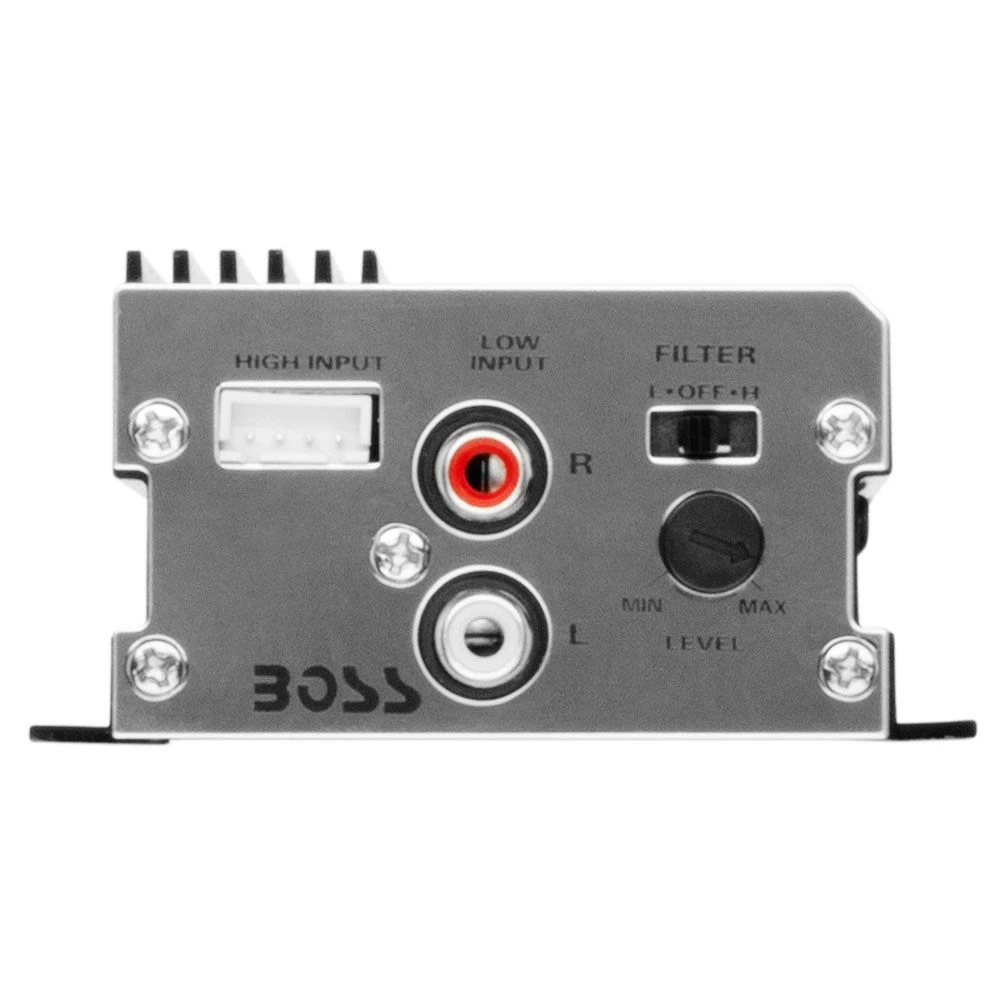

High and Low Level Inputs

An amplifier with both high-level and low-level inputs provides flexibility by allowing you to build an audio system using virtually any standard factory or aftermarket source unit. High-level (speaker level) inputs accept the signal from the speakers, while low-level (RCA) inputs accept the signal from the pre-amp outputs of the source unit.

Variable Gain Control

Variable Gain Control lets you balance the amps output with the speakers or subs the amp is driving. To much gain will lead to distortion and to little will lead to clipping.

• 100 W MAX Power, 2 Channel
  38 W X 2 RMS @ 4 ohm
• Full Range, Class A/B,
• High and Low Level Inputs
• Fixed High Pass Crossover, Fixed Low Pass Crossover,

Measurement

• Length: 4″
• Width: 3.125″
• Height: 1.625″
